Reversible Plate Compactors

Get a Price/Quote

Product Details:

Product Type Reversible Plate Compactors
Material Steel
Capacity 2.4 Ton/day
Weight (kg) 150 Kilograms (kg)
Computerized No
Automatic Yes
Color Yellow
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Reversible Plate Compactors Product Specifications

Product Type Reversible Plate Compactors
Capacity 2.4 Ton/day
Color Yellow
Weight (kg) 150 Kilograms (kg)
Material Steel
Computerized No
Warranty YES
Automatic Yes

Reversible Plate Compactors Trade Information

Main Domestic Market All India

Product Description

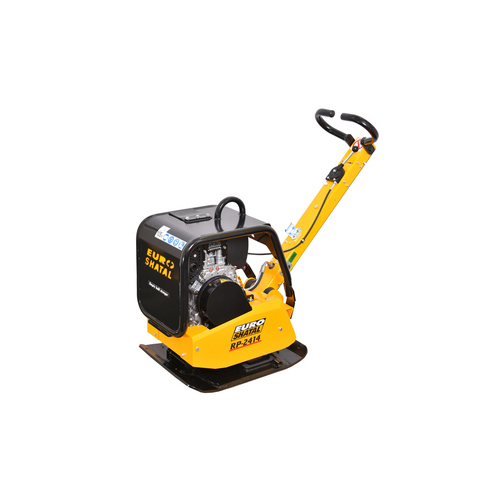

Reversible Plate Compactors - RP2414-50

Features :

Forward and reverse compaction.
Working width 50-75 cm.
Self tightening clutch-for long v-belt life.
Reinforced and strengthened base plate, especially designed for tough jobs.
Easy to mount transport wheels available for all models (except RP 4514/6514).
Ideal compactor for confined areas.
Especially suitable for compaction in utility trenches, along highways, parking areas along foundations, walls and abutments.
Handle locks in one swift motion, allowing easy transport in the upright position.
Extra strong anti-vibration mounting brackets.

Description :

Cat No : M11401

5.5 HP Honda gasoline engine with oil sensor, incl. protection cage.

Centrifugal force: 2400 kg
Weight: 149 kg
Plate width: 50 cm

Cat No : M11401.A

4.5 HP Hatz diesel engine, incl. protection cage.

Centrifugal force: 2400 kg
Weight: 164 kg
Plate width: 50 cm

CE DECLARATION OF CONFORMITY

We hereby declare that the equipment described below conforms to the relevant fundamental safety and health requirements of the appropriate CE Directives, both in its basic design and construction. This declaration will cease to be valid if any modifications are made to the machine without our expressed approval.

Product :

Vibratory Plate Compactors : RP2414-50

The said product has been sound tested per Directive 2000/14/EC

Conformity Assessment Procedure	Measured sound power level	Guaranteed sound power level
Annex VI	103 dB(A)	105 dB(A)

Relevant CE Machinery Safety Directives : 2006/42/EC, 2004/108/EC, EN500-1, EN500-4, 2000/14/EC

Appropriate internal measures have been taken to ensure that series-production units conform at all times to the requirements of current CE Directives and relevant standards.

The signatories are empowered to represent and act on behalf of the companys management.

Safety Instruction :

Laws governing safety aspects on machinery may vary between countries but the following guides will useful to all operators:
Before starting, carefully read the machine maintenance and operating manual and follow all the instructions.
Use unleaded fuel only, for gasoline engines.
Never operate the machine without the belt guard.
Keep hand and feet away from moving parts while the machine is running.
Do not operate the machine in closed places and inflammable environment.
Operating the machine is advisable only with good lighting conditions.
Hearing protection must be worn.
Foot protection must be worn.
Do not touch hot surfaces.

Technical Specification :

MODELS Cat. No.		RP2414-50 HONDA GASOLINE M11401	RP2414-50 HATZ DIESEL M11401.A
WEIGHT
Net Weight kg.	Kg	149	164
COMPACTION DATA
Vibr. Frequency	Hz	92	92
Centrifugal Force	kg.	2400	2400
Compaction Area	m²/hour	600	600
OPERATION DATA
Max. Traveling speed	m/min	20	20
CAPACITIES
Oil for gear box SAE 30	Litres	1.0	1.0
DRIVE MOTOR
Model		Honda GX160 Recoil start	Hatz Recoil Start
Output	HP	5.5	4.5
Engine speed	rpm	3450	3450
Fuel tank	litres	3.6	3.6
Engine oil SAE 15W/40	litres	0.6	0.9
NOISE AND VIBRATIONS
Sound power level according to ISO 5349 (*)
Measured sound power level LwA=dB(A)		103	104
Vibration values a=m/s		The hand - arm vibration values according to ISO 5349
Vibration values a=m/s		2.3	2.3

Dimensions :

Handle In The Working Position :

MODEL	mm	Working Position	Folding Position	mm	mm	Working Position	Folding Position
M11401 HONDA	642	1120	654	690	500	1150	1140
M11401.A HATZ	642	1120	654	750	500	1150	1140

TRANSPORT TO WORK SITE :

To avoid burns or fire hazards,let engine cool before transporting machine or storing indoors.
Turn fuel valve to the off position and keep the engine level to prevent fuel from spilling.
Tie the machine to the vehicle to prevent sliding or tipping over.

INSTRUCTION FOR LIFTING MACHINE :

Never walk or stand under a machine being lifted.
Use only the frame lifting hook (1) for lifting the machine.
Use only tested and authorised lifting equipment. Before lifting check that vibration damper and protecting frame are correctly attached and not damaged.

OPERATION :

ENGINE CHECK BEFORE STARTING :

Fill fuel tank.
Check oil level in engine crankcase and top up necessary type of oil according to manufacturers instructions.

STARTING THE ENGINE :

Open handle locking pin

OPERATING THE MACHINE :

Let the compactor progress at its normal speed while guiding it in a straight line.
Three or four passes depending on the material are normally required to achieve the best compaction.
The soil must be moist to achieve the best compaction.
It must not be too wet nor too dry so that dust is created.
Do not operate the compactor on hard surfaces or concrete.
Attach a polyureathane plate under the compactor when compacting paving stones.

IMPORTANT ADVICE :

The manufacturer declines all responsibility for loss or damage resulting from misuse or any modification or alteration that does not conform to the manufacturers original specifications. At the workstation, the sound pressure level may exceed 85 db (A). In this case individual protection measures must be taken

Spare Parts Ordering :

When ordering spare parts, please mention machine serial no., part no. and description.

Scrapping :

In the event of deterioration and scrapping of the machine, the following items must be disposed of in accordance with the requirements of the legislation in force.

Main Materials:

Engine : Aluminium (AL), Steel (AC), Copper (CU), Polyamide (PA)
Machine : Steel sheet (AC)

The instructions for use and spare parts found in this document are for information only and are not binding. As part of our product quality improvement policy, we reserve the right to make any and all technical modifications without prior notice.

Maintenance Schedule :

Check all external screw connections for tight fit approx. 8 hours after first operation.

Parts	Maintenance	Maintenance interval
Air filter Engine oil Other parts	Check for external damage and tight fit. Check foam and filter insert clean or replace if necessary. Check oil level, top up if necessary. Remove all dirt, stones etc. from the Power trowel after each day of operation..	Daily
Belts	Check tension and wear - replace if necessary.	Weekly
Engine	See engine manufacturers handbook

Monthly maintenance :

Perform maintenance work on engine according manufacturers instructions.
Check belt tightness and tighten if necessary.
Belts should be move 10 -15 mm when pushed by the thumb
Check and retighten bolts and nuts.

INSTRUCTIONS FOR ORDERING :

Please State Machine Details in the Following Sequence:

Machine Serial Number
Part Number, Description and Quantity of Parts
Full Delivery Address

Manufacturers Liability and the Use of Genuine Spare Parts

Liability for this machine is accepted only when the machine is defective from the outset. Liability is reduced or nullified in the event that the user fails to comply with the operating and maintenance instructions and uses spare parts which are not guaranteed.
